Core the Bathroom wall to move the toilet

Under normal circumstances we strongly suggest when fitting a bathroom to leave the toilet in the same position. Moving the toilet will require changes to the soil waste pipe. In a new build house the soil stack is normally hidden within the building, while an older house, the soil stack is normally on the outside back of the building.

Moving a toilet in an older house

Normally the toilet is against the back wall of the house. The soil pipe comes straight through the wall connecting the toilet waste outlet to the soil stack. To move the toilet requires that a new 4inch hole is cored out of the bathroom exterior wall. A new section of waste pipe pushed through the all and the connection to the soil stack either extend or reduce the waste.

The challenges of moving a toilet

  • Coring out the 4 inch hole will take 2 – 3 hours of noisy dusty work.
  • The exterior of the house will have a hole left over from where the old soil waste pipe was removed.
  • Normally this is filled in with render. Leaving a scare to the exterior of the brick work (Not Ideal)
  • If the waste pipe is cast iron or asbestos, the complete soil stack will need to be replaced prior to the other work taking place.
  • If the soil stack is asbestos the correct trained trades’ people will need to be commissioned to change the soil stack.

Bathroom to Shower room Conversion

The client requested that we change the bathroom to a shower room. Because of the width of the bathroom and the position of the window, there was only one corner wall that would be large enough to fit a rectangle shower; this was the corner where the toilet was located.

This forced the moving of the toilet. This is the original bathroom design and floor plan which shows the position of each bathroom item and the waste and soil stack.

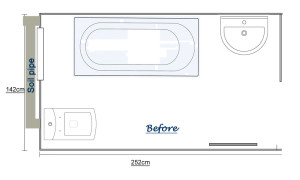

Bathroom Floor Plan with Soil Pipe Position

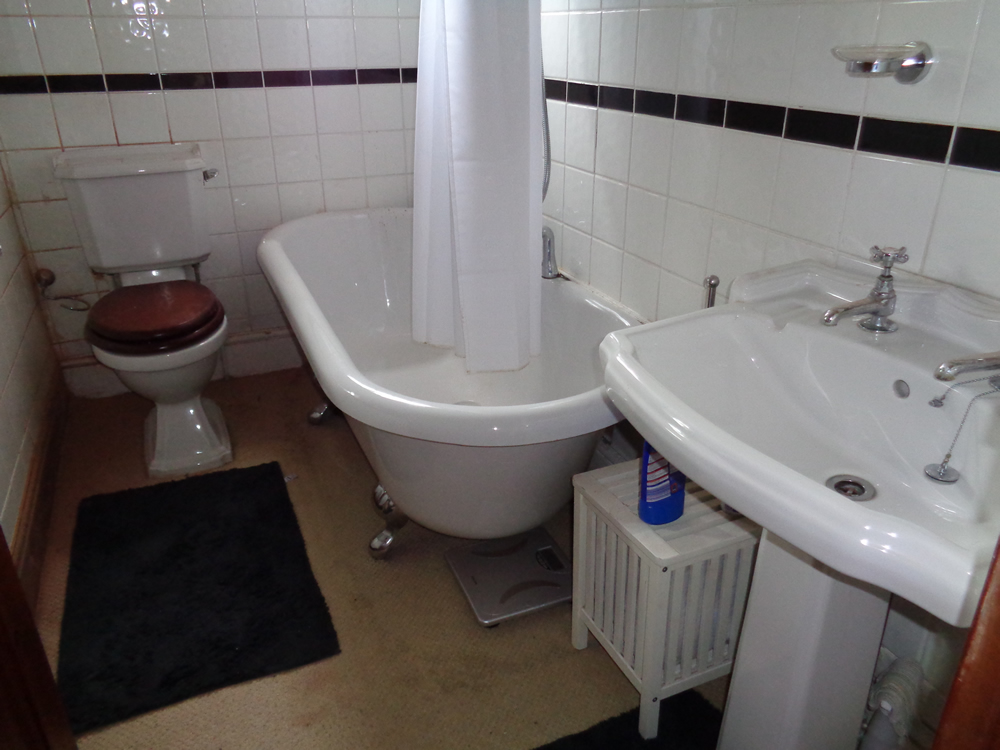

Old Bathroom with Roll Top bath

This next image shows the new floor plan for the shower room and shows the new position of the toilet and toilet waste pipe.

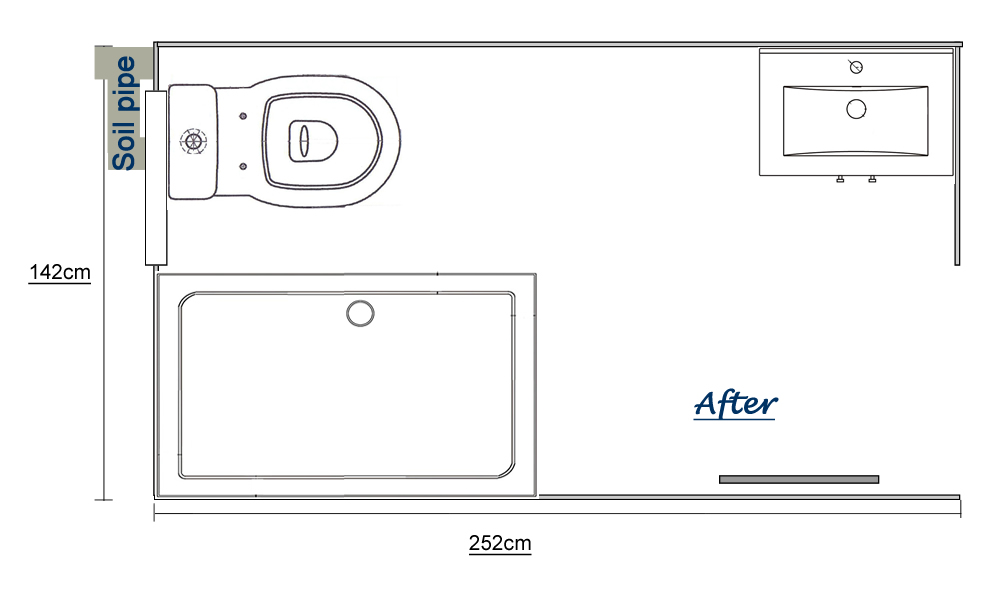

New Rectangle Shower Floor Plan

All of the normal protocols where carried out while converting the bathroom to a shower room including

  • Removing the bathroom suite and tiles
  • Boarding the walls and plastering the ceiling
  • First fit plumbing getting the water feeds and waste pipes in the correct place
  • Fir the shower tray and create the first seal
  • Core out the wall and connect the toilet waste to the soil pipe
  • Tile all four walls
  • Tile the floor
  • Grout the walls and floor
  • Fit the basin, wc and shower screen
  • Silicon seal and clean ready for hand over to the client

Here are the images of the shower room completed

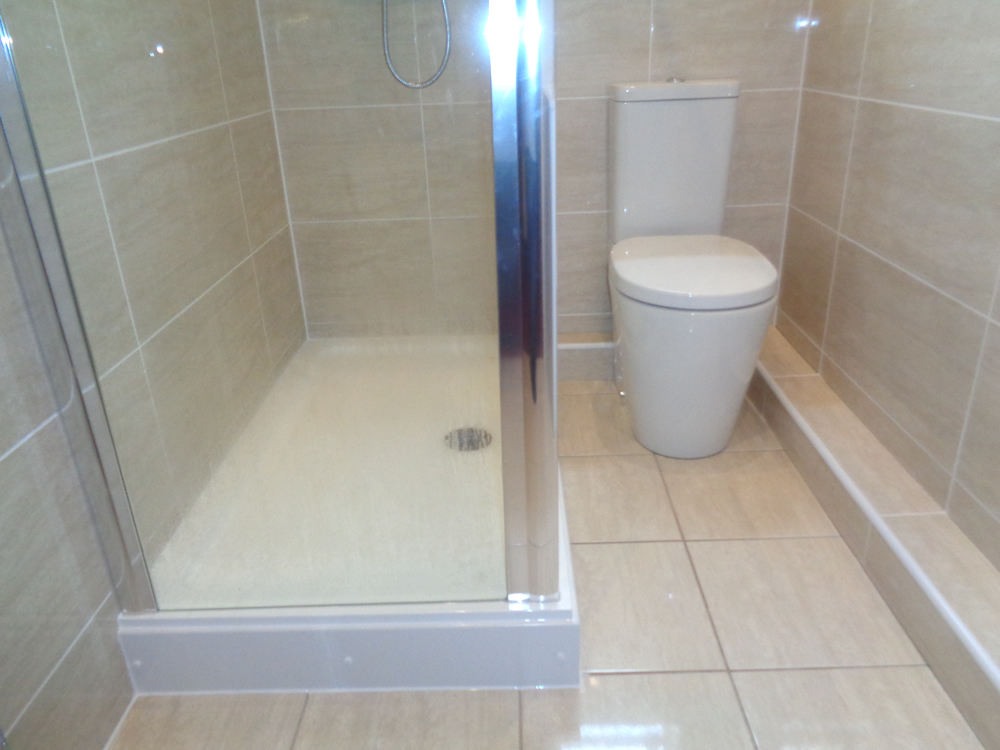

Shower Rooom Fitted

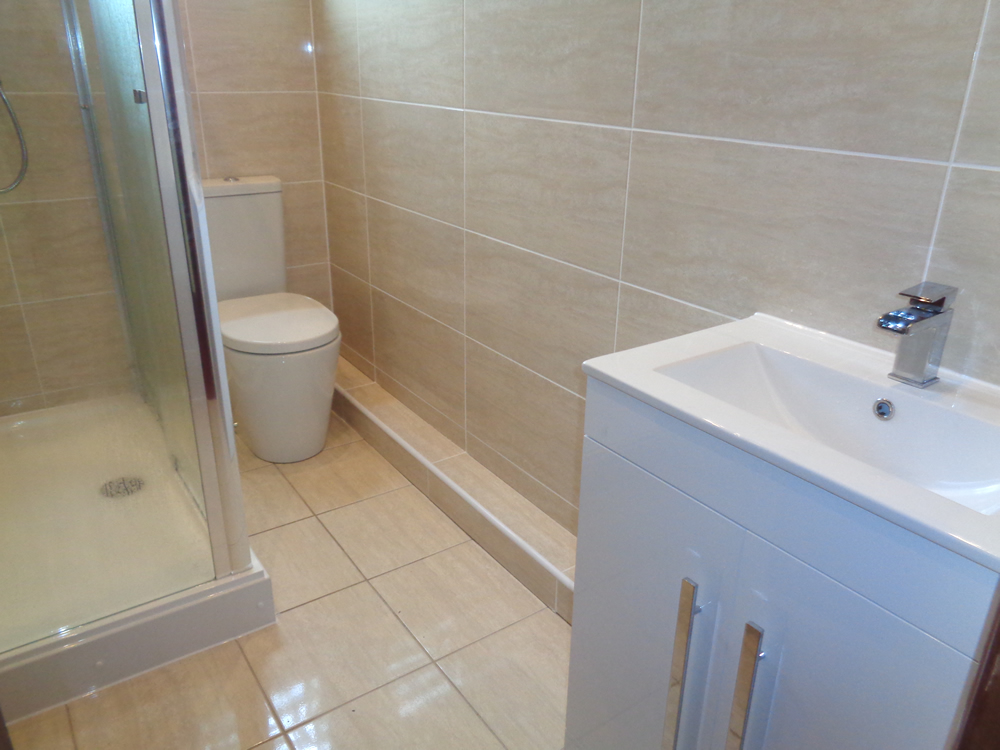

Vanity Basin in Shower Room

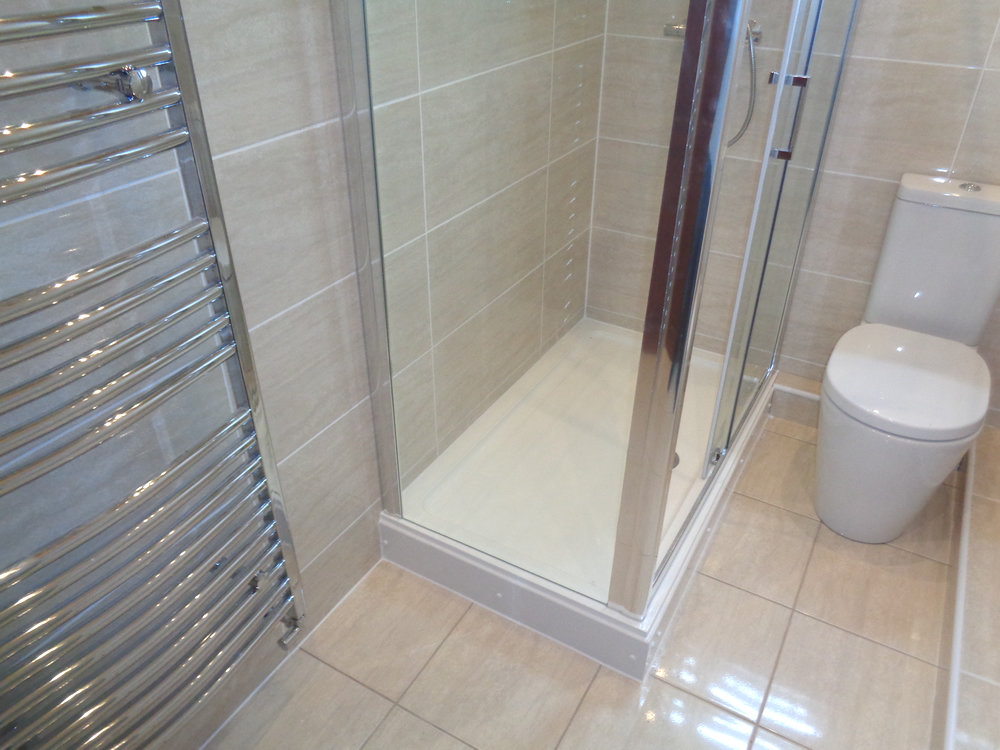

Towel Warmer In Shower Room

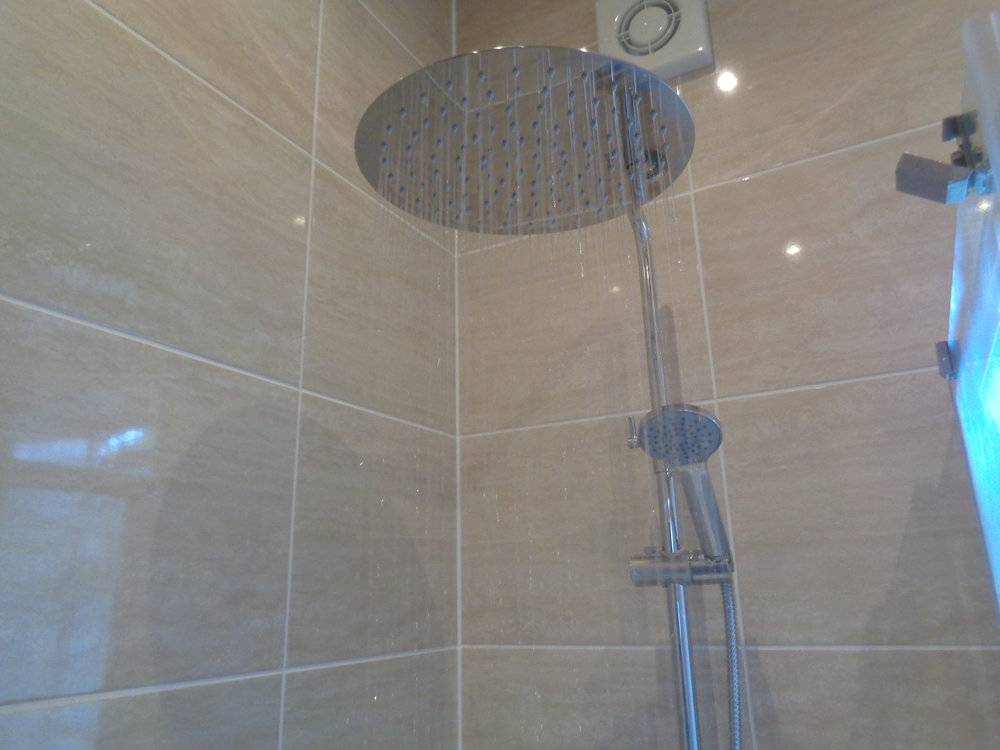

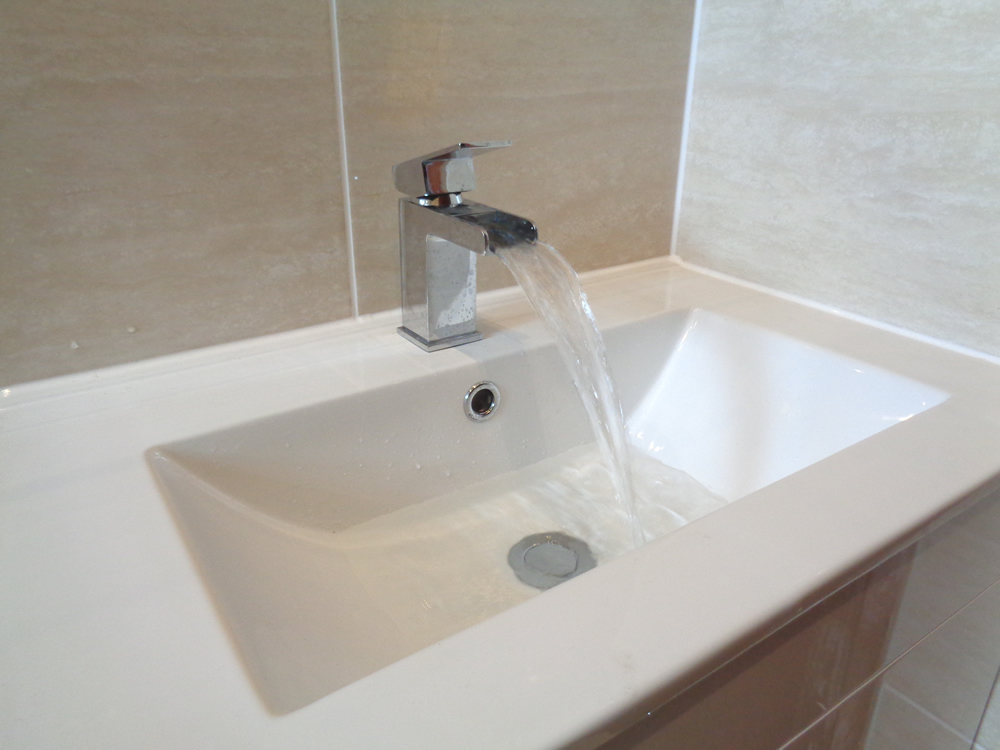

Vanity Basin With Water Fall Basin TapLarge Thermostatic Shower Head

Video of the Bathroom and Shower Room
